Virgo - Double Plotter Desktop Label Finisher

  • Virgo compact desktop label finishing system

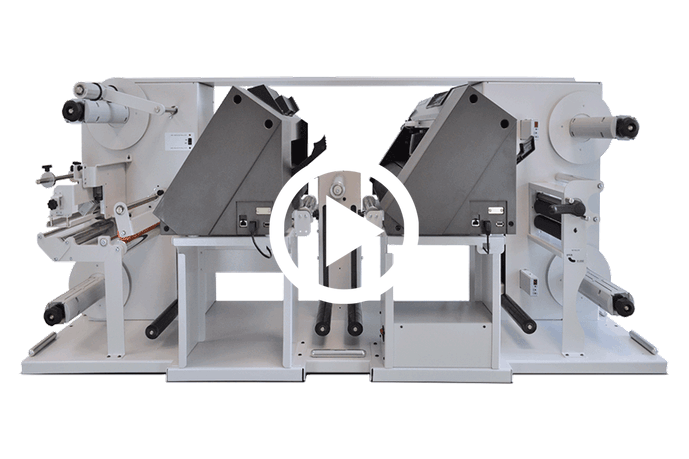

  • Virgo compact desktop label finishing system video

Double Plotter Desktop Label Finisher

  • Virgo Double Plotter Label Finishing System
  • Double Plotter allows for fast production without compromising the cut quality.
  • Short run in-house label production reducing cost and inventory requirements
  • Produce full bleed labels of different shapes and sizes with ease
  • Lamination for added durability (no need for special media)
  • No need to order pre-die cut label rolls
CONTACT US


Virgo Desktop Label Finishing System -
Create Custom Labels With a Complete Compact Finishing System

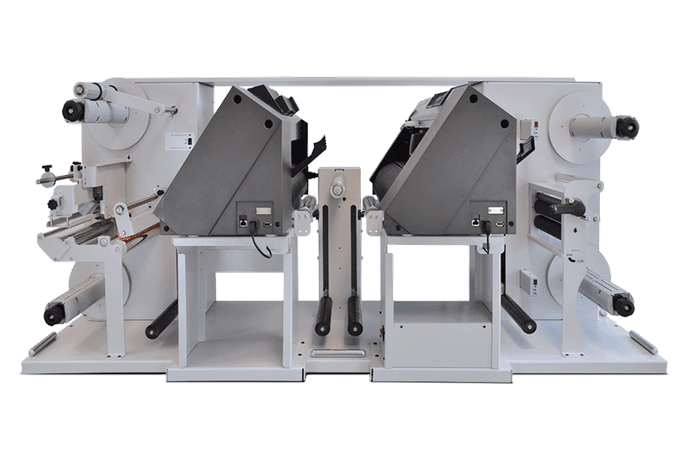

Blade label finishing system with double plotter.

The Virgo Double Plotter Desktop Finishing System is an indispensable companion for any NeuraLabel printing system, revolutionizing your label finishing process with cutting-edge technology. This versatile device offers a comprehensive suite of features, including label unwinding, lamination for enhanced durability, double plotter digital die-cutting, precise removal of excess label material around each die-cut shape, slitting, and rewinding. It equips you with everything needed to professionally cut and finish labels, making it a vital asset for your labelproduction.

This finishing system is powered by double plotters making it the ideal solution for faster production while having the flexibility of knife cutting technology. This technology allows you to cut different types of materials and shapes on the fly without the added cost of dies.

The unit is also equipped with a cutter management tool that works in tandem with the cameras, forming an integrated optical mark registration system that provides cutting speed optimization across both plotters and avoids synchronization issues. The Virgo Double Plotter’s core features offer the user full flexibility of materials, limitless variations in label design, and a smooth workflow.

Virgo software
The Virgo Finishing System comes equipped with advanced camera technology that collaborates seamlessly with Virgo software. The cutting position is synchronized with intuitive software and cameras to ensuring accuracy in label cutting. Importing PDF cutting files simplifies the workflow and makes label creation a breeze.

Double Plotter Finishers
The double plotter finisher guarantees faster cutting speeds. Regardless of different shapes and sizes, the two heads on the double plotter are always moving, versus a double head system where one head must be disabled while the other is in action.

Virgo VRG22X2 Specifications•
VRG22X2
Input / Output Roll Diameter 7.87″ (200 mm)
Minimum Web Width 4.25″ (108 mm)
Maximum Web Width 8.86″ (225 mm)
Maximum Cutting Width 8.46″ (215 mm)
Minimum Slitting Width 0.75″ (19 mm)
Minimum Label Length 0.39″ (10 mm)
Maximum Label Length 13.77″ (350 mm) with limitations
Lamination Module YES (optional)
Number of Slitting Blades up to 8
Maximum Media Thickness 10 mil (0.25 mm)
Maximum Cutting Speed 600 mm/s (24 in/s) in all directions
Liner Rewind Module YES (optional)
Dimensions L = 67.71″ (172 cm) H = 29.52″ (75 cm) W = 30.7″ (78 cm)
Roll Core Size 3″ (76 mm)
Cut Precision 0.3 mm (0.012″)
Programmable Cutting Force 20 gf - 300 gf in 31 steps (Max 300 gf)
Power Requirements 100-240 VAC, 240 watts
Interface & Software Software running with Windows 8.1 or later.
Not supported by macOS.
PC needs 2 USB port for plotters.
Warranty One year parts and labor. Usage limitations may apply.
On-site service available.
Speak with your sales representative for details.

•Specifications subject to change.
