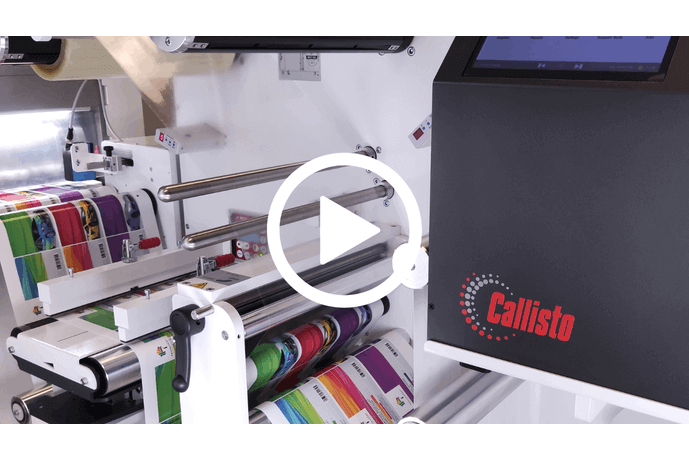

  • NeuraLabel TotalPress 5000 label press video

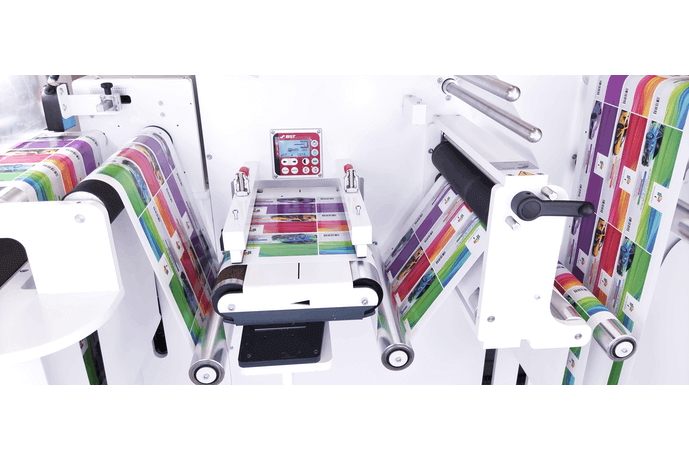

  • NeuraLabel TotalPress splice table

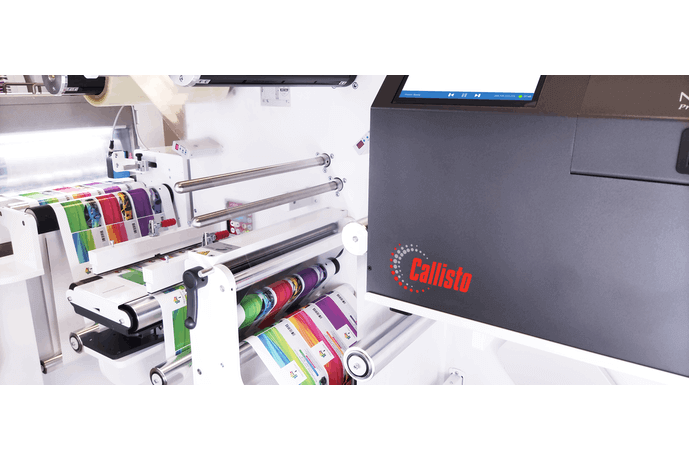

  • NeuraLabel TotalPress 5000 path of lamination to rotary die cutter

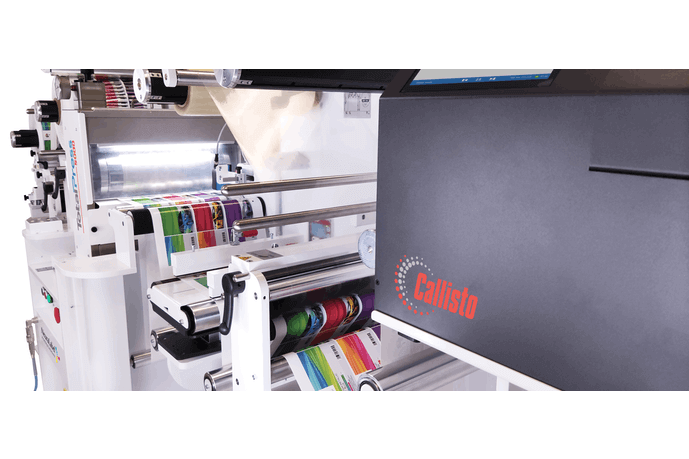

  • NeuraLabel TotalPress 5000 paper path through lamination

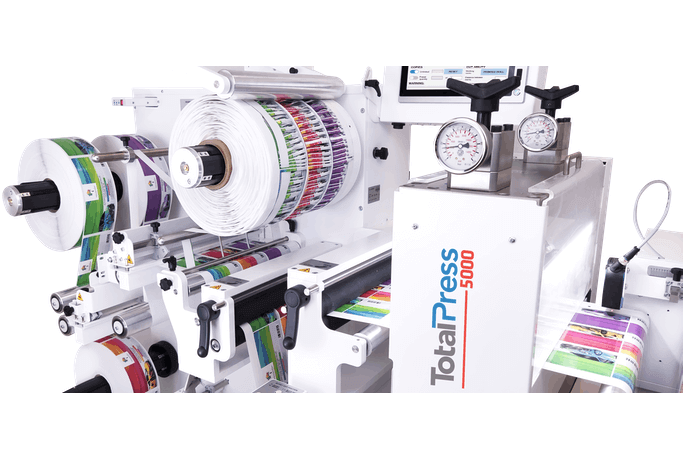

  • NeuraLabel TotalPress 5000 rewinder module

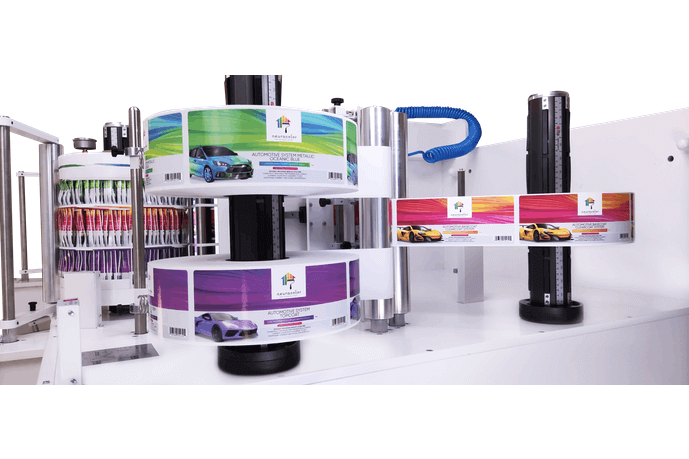

  • NeuraLabel TotalPress 5000 with finished rolls rewound

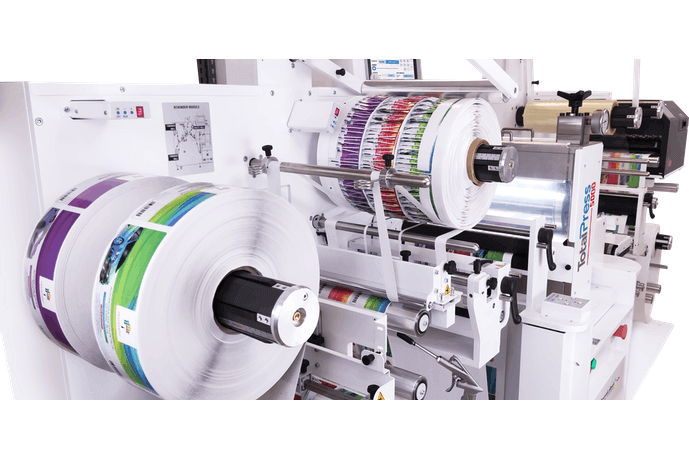

  • NeuraLabel TotalPress 5000 with finished rolls

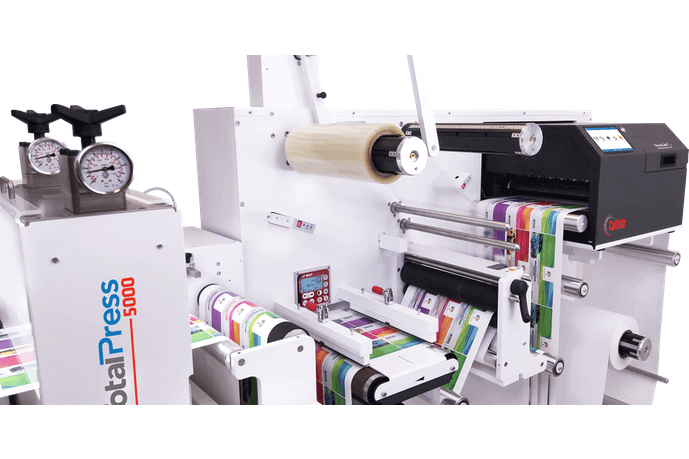

  • NeuraLabel TotalPress 5000 die cutting module

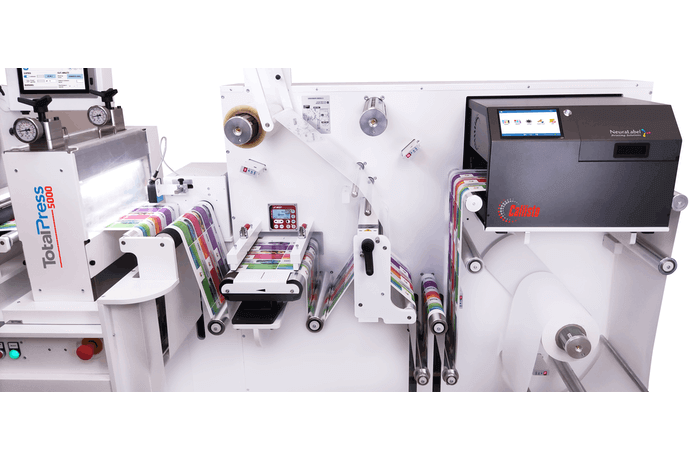

  • NeuraLabel TotalPress 5000 unwinder module
NeuraLabel TotalPress logo

NeuraLabel TotalPress 5000 Series
Industrial Digital Label Press

  • Industrial Production Volume Digital Label Press
  • High-Volume Production with Extra-Wide Print Path
  • Quality High-Resolution Printing Powered by Callisto
  • Durable UV-Resistant Pigment Inks
  • In-Line Print, Laminate, Die-Cut and Slit
  • Touchscreen PC Interface
  • Finishing speed up to 90 feet/minute
  • 13" Web Allows Greater Label Throughput
  • Affordable Flexible Magnetic Dies

NeuraLabel TotalPress 5000 Series
Powered by Callisto

Industrial Inline Systems that prints and finishes labels for complete in-house control.

The NeuraLabel TotalPress 5000 Series is a high-speed, high-resolution, complete label printing solution. This press can print, die-cut, and finish labels at speeds of up to 90 feet per minute, delivering finished rolls immediately ready for the production line. This all-in-one solution offers in-line laminating, die-cutting, waste removal, slitting, and rewinding, meeting the demands of industries that require large-scale output with flexibility.

By bringing label production in-house, businesses can simplify inventory management, reduce costs, and gain greater creative control over their labeling processes. With web guide management and a user-friendly PC interface, operations are simplified, allowing for quick adjustments and seamless integration into your existing workflow.

Print shops and private label companies are leveraging the TotalPress 5000 to offload short runs from larger, more expensive equipment or to add in-house label production capabilities. This allows for faster turnaround times, improved quality control, and increased profitability on lower-volume label runs.

NeuraLabel TotalPress 5000 Series Specifications*
Print Speed Variable Speed Control Up to 18 inches per second (457 mm per second)
Print Quality 1200 x 4800 DPI Full Color
Ink NeuraLabel Durable Pigment Ink
Structure Steel Frame with LED Illuminated Work Area
Cutting Dies Flexible steel - From 130 mm to 360 mm Repeat
*Increased repeat available upon request.
Laminate Self Wound or Linered
Dimensions 118.90" (3020 mm) W X 67.32" (1710 mm) H X 32.58" (827.5 mm) D
Weight 2,244 lbs (1017.8 kg)
Print Web Width 12" (304 mm)
Web Width Range 3.9" (100 mm) - 13" (330 mm)
Maximum Diecutting Width 13" (330 mm)
Maximum Diecutting Length 14.17" (360 mm)
Maximum Roll Diameter 19.7" (500 mm)
Maximum Laminate OD 9.84" (250 mm)
Maximum Finished Label Rewind 15.75" (400 mm)
Maximum Waste Matrix Rewind 11.8" (300 mm)
Number of Slitting Blades Up to 15
Power 220-240V, 2 kW, 50/60 Hz
Registration Sensor / Mark Laser / 0.16" x 0.16" (4 mm x 4 mm)
Core Size 3" (76 mm)

Contact support at support@NeuraLabel.com or 281.207.8555 x1.
