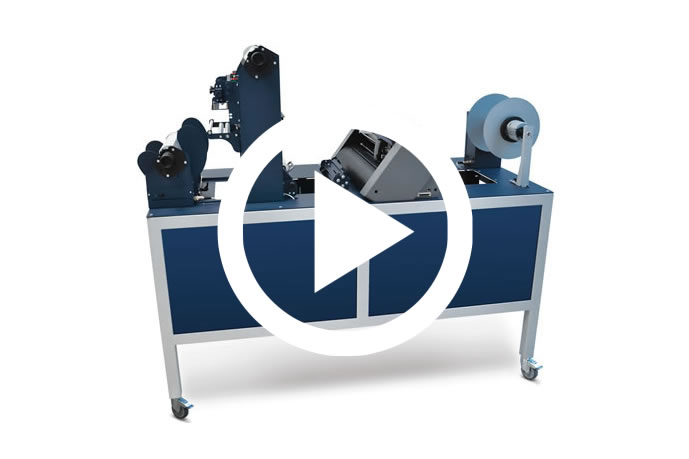

  • Scorpio All-in-One Series of digital label finishers video thumb

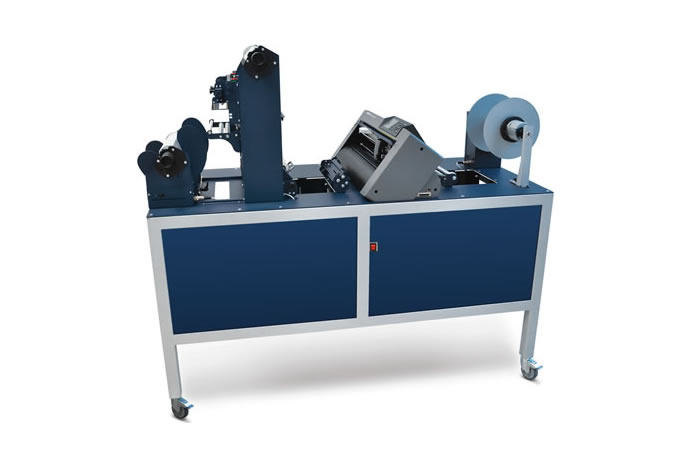

  • Scorpio All-in-One Series of digital label finisher

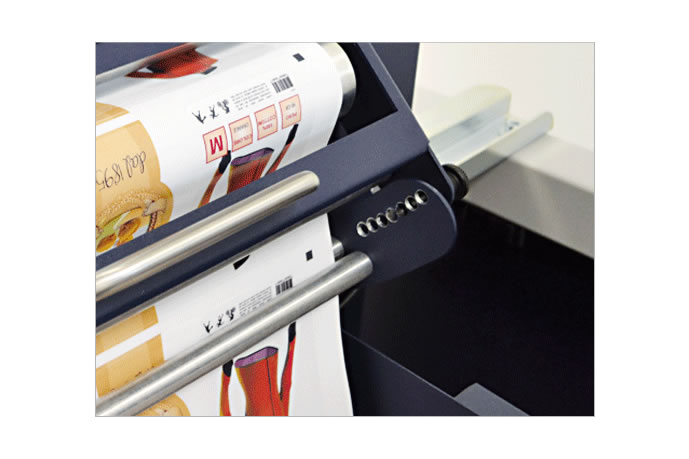

  • Scorpio All-in-One Series of digital label finisher with a roll of labels

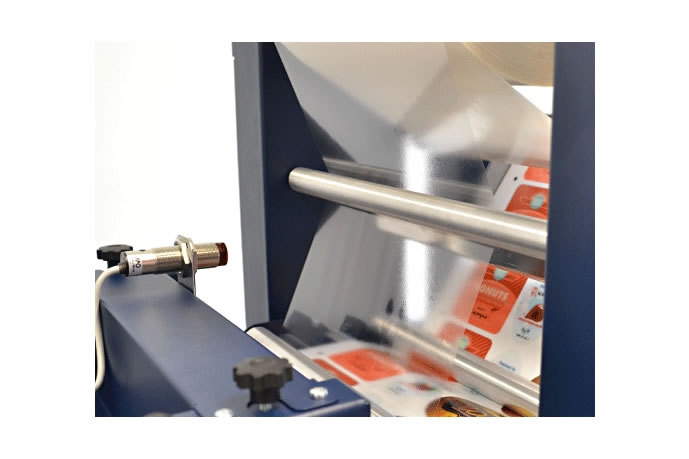

  • Scorpio All-in-One Series of digital label finisher with laminated labels
  • Scorpio All-in-One Series of digital label finisher with a roll of labels

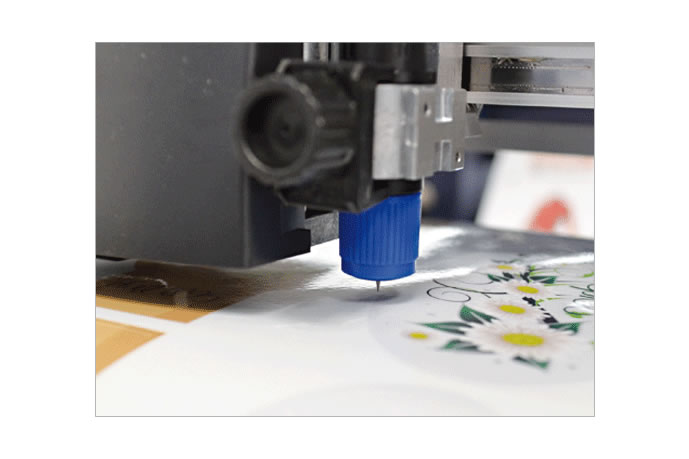

  • Scorpio All-in-One Series of digital label finisher with closeup of cutting plotter

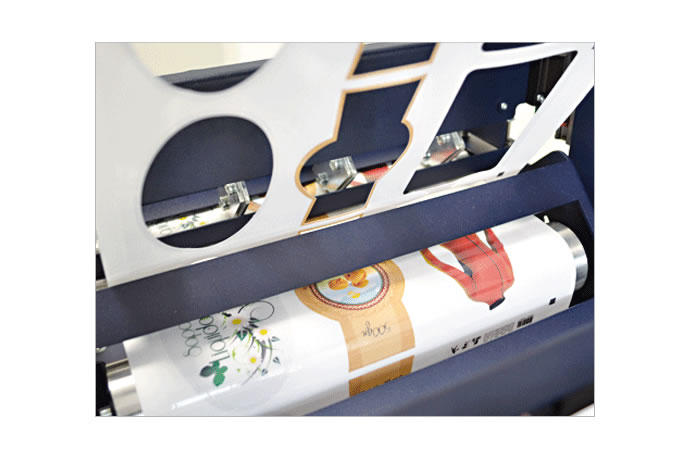

  • Scorpio All-in-One Series of digital label finisher with excess label material removed

Scorpio All-in-One Series of Digital Label Finishers

  • Short run label production in-house means reducing inventory requirements and costs
  • Producing full bleed labels will no longer be a nightmare
  • Laminating for labels added durability (no need for special media)
  • No need to order pre-die cut label rolls
  • No need for ultra-precise label margin adjustment when printing in full bleed
  • No need to set up a minimum gap between labels when printing in full bleed saving on media
GET A FREE QUOTE NOW!


Scorpio Label Finishers -
Create Durable Custom Product Labels with an
All-In-One Finishing System

All-in-one digital finishing systems that unwind, cut and laminate.

The Scorpio digital label finishers are the perfect complement to any NeuraLabel printing system. They give you the ability to create any custom size or elaborate shape label you can imagine. All systems provide a very accurate label finishing solution using cutting plotter technology. This allows you to cut different types of material and shapes on the fly without the added cost of dies. The units are equipped with a cutter management tool that works together with a camera forming an integrated optical black-mark registration system that provides cutting speed optimization and avoids synchronization issues. In addition, the Scorpio's optional laminating module adds protection and durability to make your labels last much longer.

The Scorpio SCR22PL and SCR35PL are all-in-one systems that unwind, laminate, digitally die-cut, and remove excess label material, offering you everything to professionally cut and finish labels in-house without the added time and expense of outsourcing.

Producing professional grade, full bleed labels on demand will no longer be a hassle with the versatility and unmatched precision of the Scorpio.

Scorpio Series Specifications•
SCR22PL SCR35PL
Input / Output Max. Roll Diameter 9.84″ (250 mm) 9.84″ (250 mm)
Minimum Media Width 3.94″ (100 mm) 3.94″ (100 mm)
Maximum Media Width 8.86″ (225 mm) 14″ (355 mm)
Maximum Cutting Width 7.87″ (200 mm) 13″ (330 mm)
Minimum Slitting Width 0.75″ (19 mm) 0.75″ (19 mm)
Minimum/Maximum Label Length 0.39″ (10 mm) / 17.71″ (450 mm)
Lamination Module YES
Number of Slitting Blades up to 8 up to 13
Maximum Media Thickness 10 mil (0.25 mm) 10 mil (0.25 mm)
Maximum Cutting Speed 24 ips (600 mm/s) in all directions
Roll Core Size 3″ (76 mm) 3″ (76 mm)
Dimensions L = 78.74″ (200 cm) H = 57.06″ (145 cm) W = 27.56″ (70 cm)
Weight (estimated) 518 lb (235 kg) 540 lb (245 kg)
Warranty One year parts included. Usage limitations may apply.
On-site service available.
Speak with your sales representative for details.

•Specifications subject to change.
